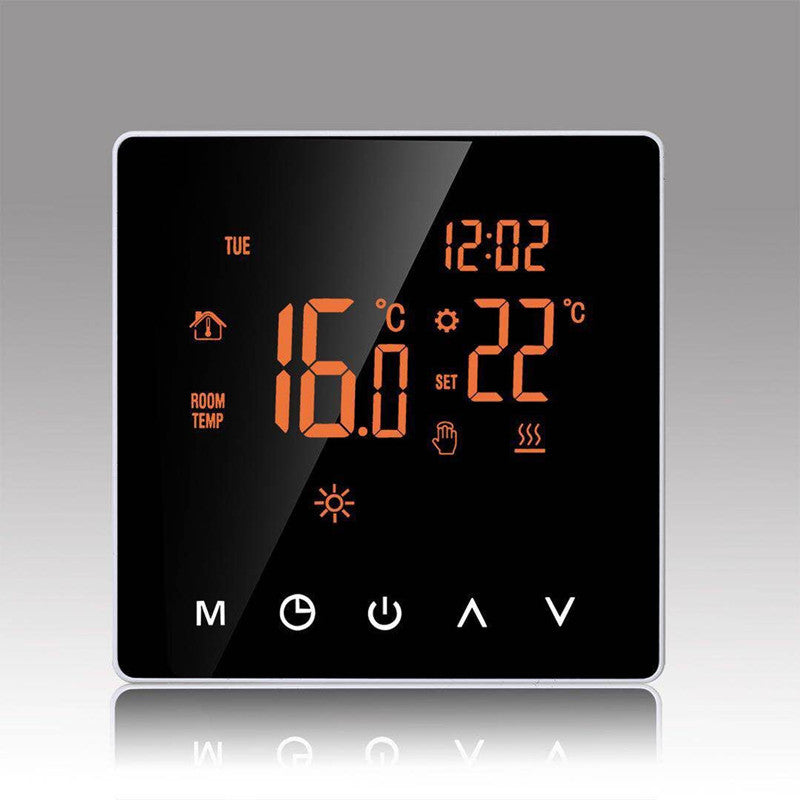

Electric heating thermostat

product description:
The AYM-81H16A digital heating thermostat uses a microcomputer control chip to detect temperature through high-precision sensors inside or outside the thermostat. It compares with the parameters set by the user in real time, and automatically controls the heating devices such as heating cables, heating films, and heating carbon crystals to keep the room temperature at a constant temperature.

basic skills:
Indoor temperature setting; temperature calibration function; power-off memory function; weekly programming function

Mechanical specifications:
Button: touch the button
Protection level: IP20
Shell: Flame-retardant PC
Installation hole distance: 60mm (standard)
Dimensions: 86X90X13mm (length X width X height)
Terminal: can connect 2X1.5m2m or 1X1.5m2m wire

Electrical Specifications:
Own power consumption: <2W
Temperature control range: 5.0℃-95.0℃ (upper limit 35℃-95.0℃ adjustable)
Outer limit temperature value: 5.0℃-60.0℃ (factory 35℃)
Temperature control accuracy: ±1℃
Timing error: <1%
Load current: 10A
Dimensions: 86mm*86mm*13mm (height * width * thickness)
Power supply voltage: 220VAC 50/60HZ
