Easyshop
10.36inch Quad Split Touch Screen with 4 AHD Front Rear Sides View Camera DVR Recording Backup Camera 4K Dash Cam
10.36inch Quad Split Touch Screen with 4 AHD Front Rear Sides View Camera DVR Recording Backup Camera 4K Dash Cam
Regular price
£233.32 GBP
Regular price
£0.00 GBP
Sale price
£233.32 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
Specifications
|
Items
|
Function Brief
|
Performance Evaluation
|
|
System
|
Manipulation language
|
English/Chinese
|
|
Interface
|
Graphical menu operation
|
|
|
Mode of operation
|
Touch mode
|
|
|
Video input
|
Video input
|
4 channels AHD video input
|
|
Video mode
|
Default boot recording, no seconds lost
|
|
|
Video format
|
2K H.264 video, 4 channels of video are saved separately
|
|
|
Video display
|
Real-time display
|

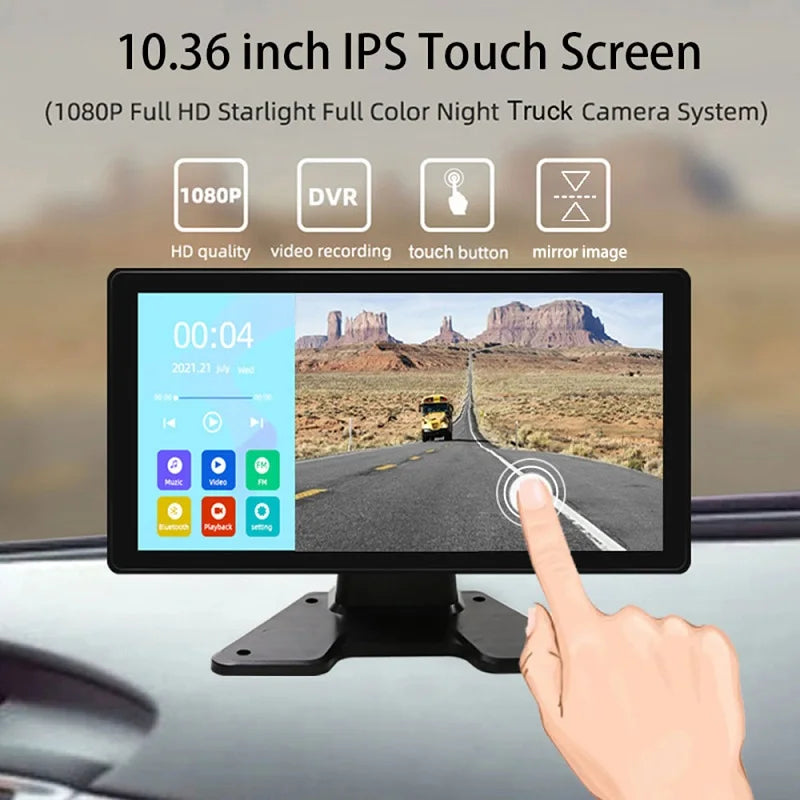

10.36 inch IPS Screen,1600*720
|
|
Video display
|
10 multi-view display modes
|
|
|
Local playback
|
Local playback, check at any time
|
|
|
screen protector
|
Can be set to 1 minute/5 minutes/off
|
|
|
Trigger display
|
Touch screen display
|
Automatically switch to the corresponding camera view
|
|
Multimedia
|
BLE
|
Support BLE connection to mobile phones, play mobile phone music and other functions
|
|
FM
|
Support FM transmission, connect to the car radio to play music
|
|
|
Monitor
|
Parking monitoring |
Optional 1 hour/3 hours/5 hours surveillance video
|
|
The video store
|
TF cad |
CLASS10 U1, minimum 32GB, maximum support 256GB
|
| Others |
Work Temperature
|
-20~65 ℃
|
|
Cooling method
|
Passive cooling
|
|

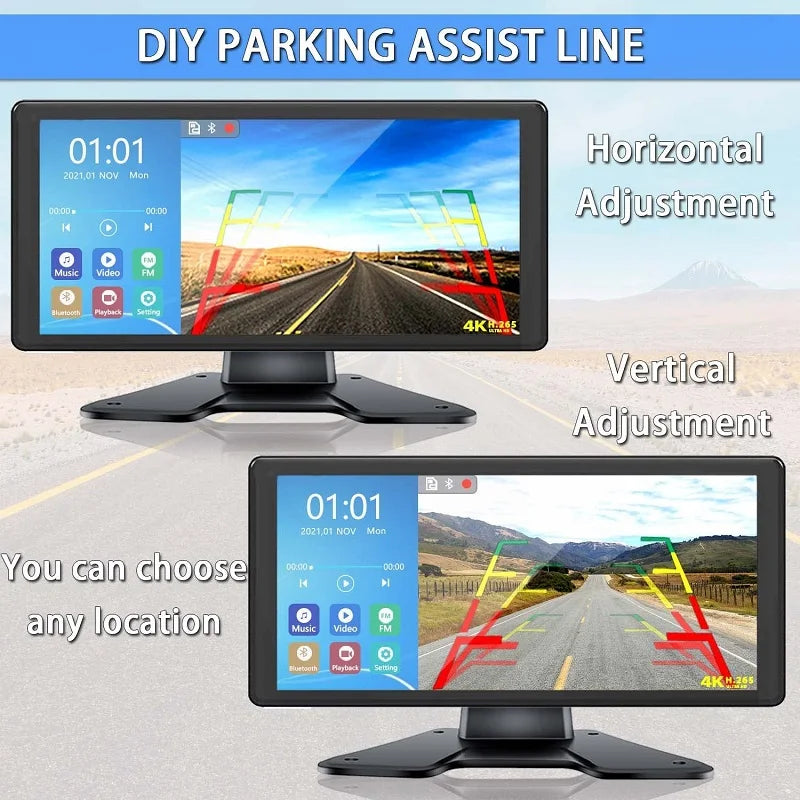

| Reversing line |
Adjustable
|
|
| Video duration |
Video recording duration can be set
|
|
|
Channel trigger delay
|
Turn signal delay can be set
|
|
|
Screen mirroring
|
The four-channel picture supports mirror display, and the menu can be set | |
|
License plate setting
|
Support
|
Product List

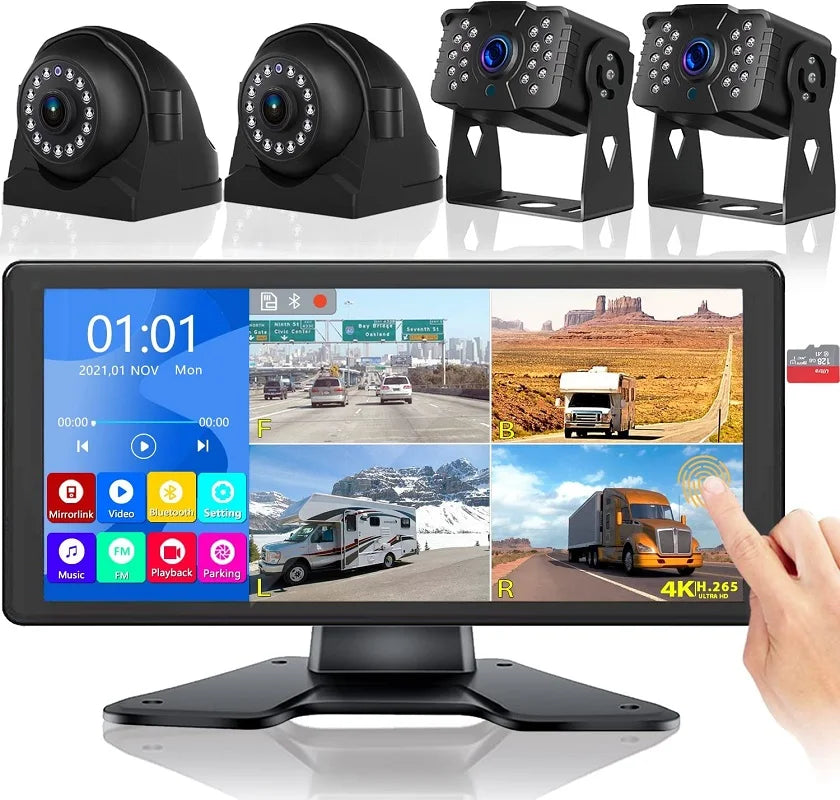

1. 10.36 Inch Monitor 2. Bracket & Screws 3. 15m Cable 4. Sticker 5. Side
Camera 6. Side Camera 7. Front Camera 8. Rear Camera 9. 5m Cable 10.
5m Cable 11. 5m Cable 12. Power Harness 13. User Manual
Product Description
