SIP Phone Low Price Hotel Office IP Phone Telephone X3S/X3SP Fanvil SOHO IP Phone

Name: SIP Phone Low Price Hotel Office IP Phone Telephone X3S/X3SP Fanvil SOHO IP Phone
Brand: ThatWasEpicShop
SKU: 201190689011900_514191480
Price: 122.4 GBP
Availability: InStock

£122.40 GBP

~~£0.00 GBP~~ £122.40 GBP

Sale Sold out

Tax included. Shipping calculated at checkout.

Specification X3S/X3SP

Product variants

Quantity

Product Description

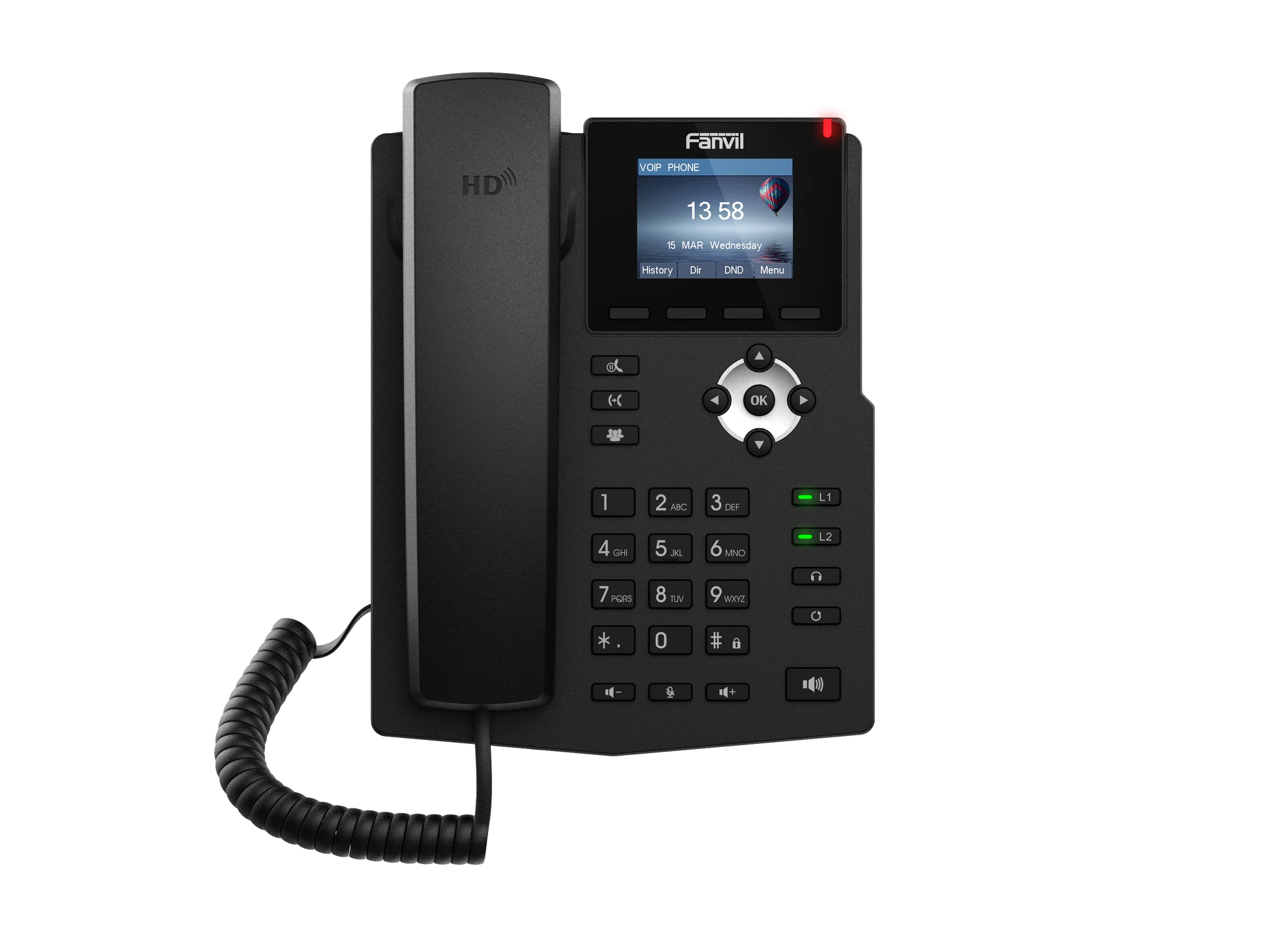

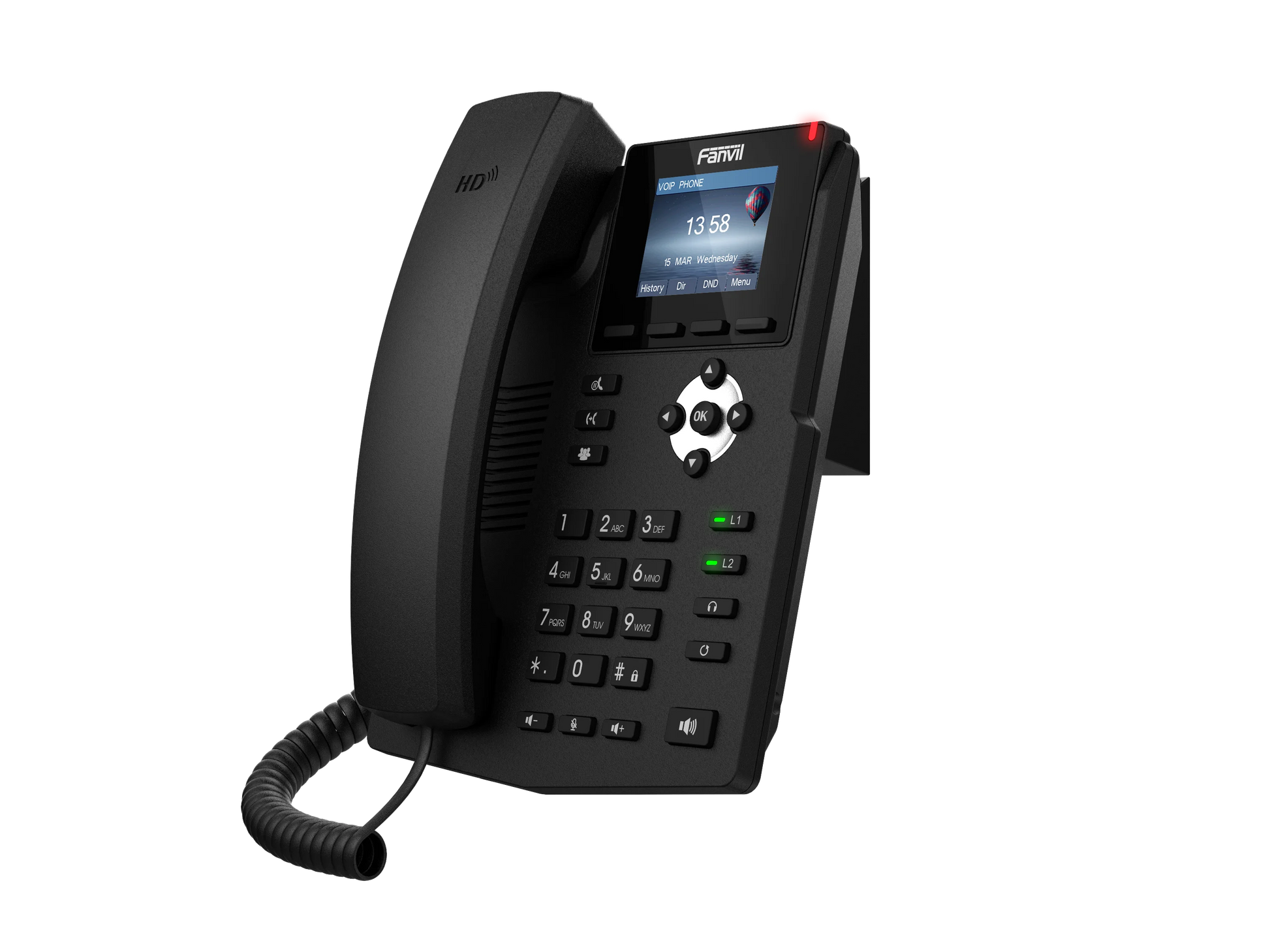

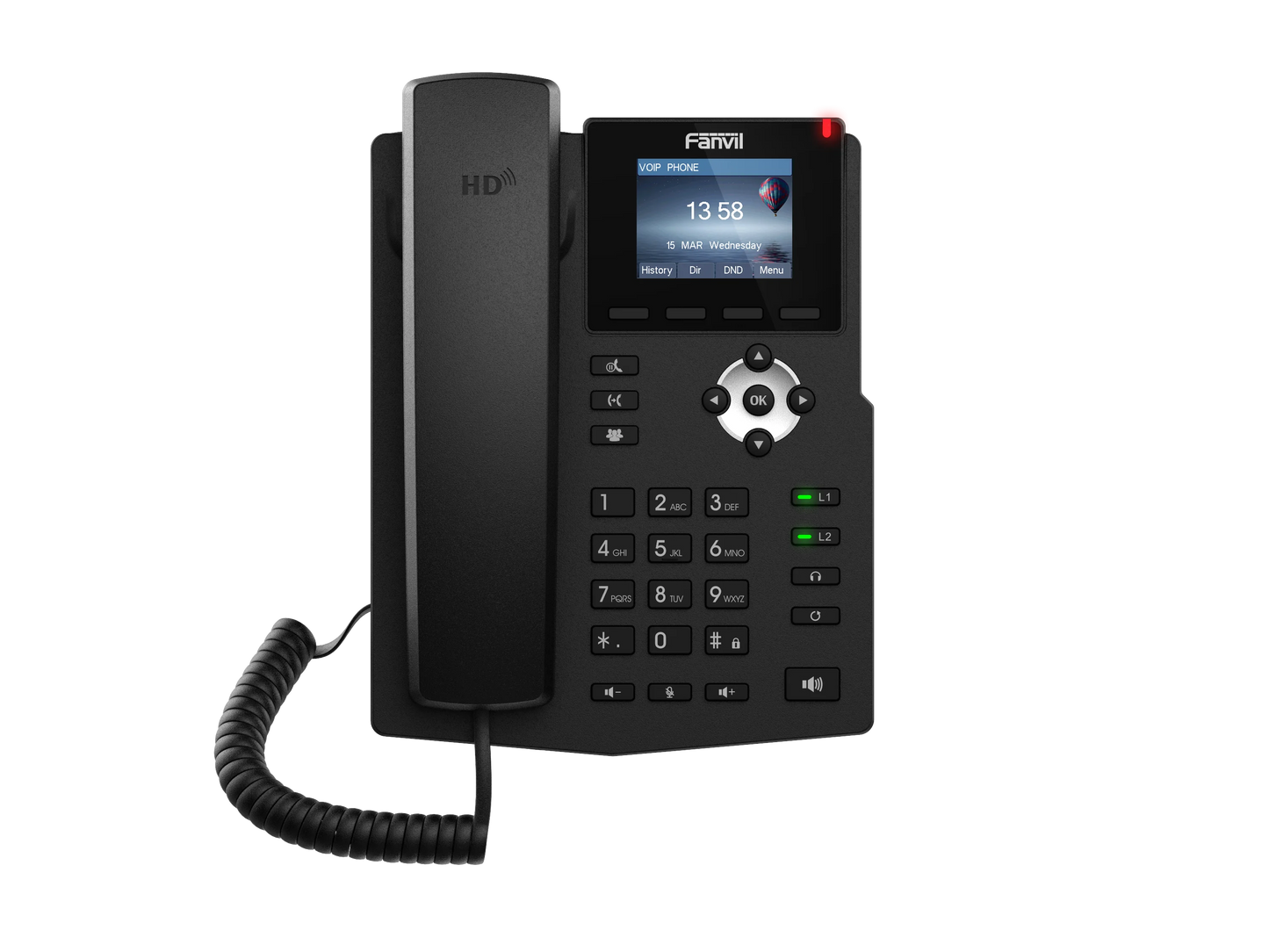

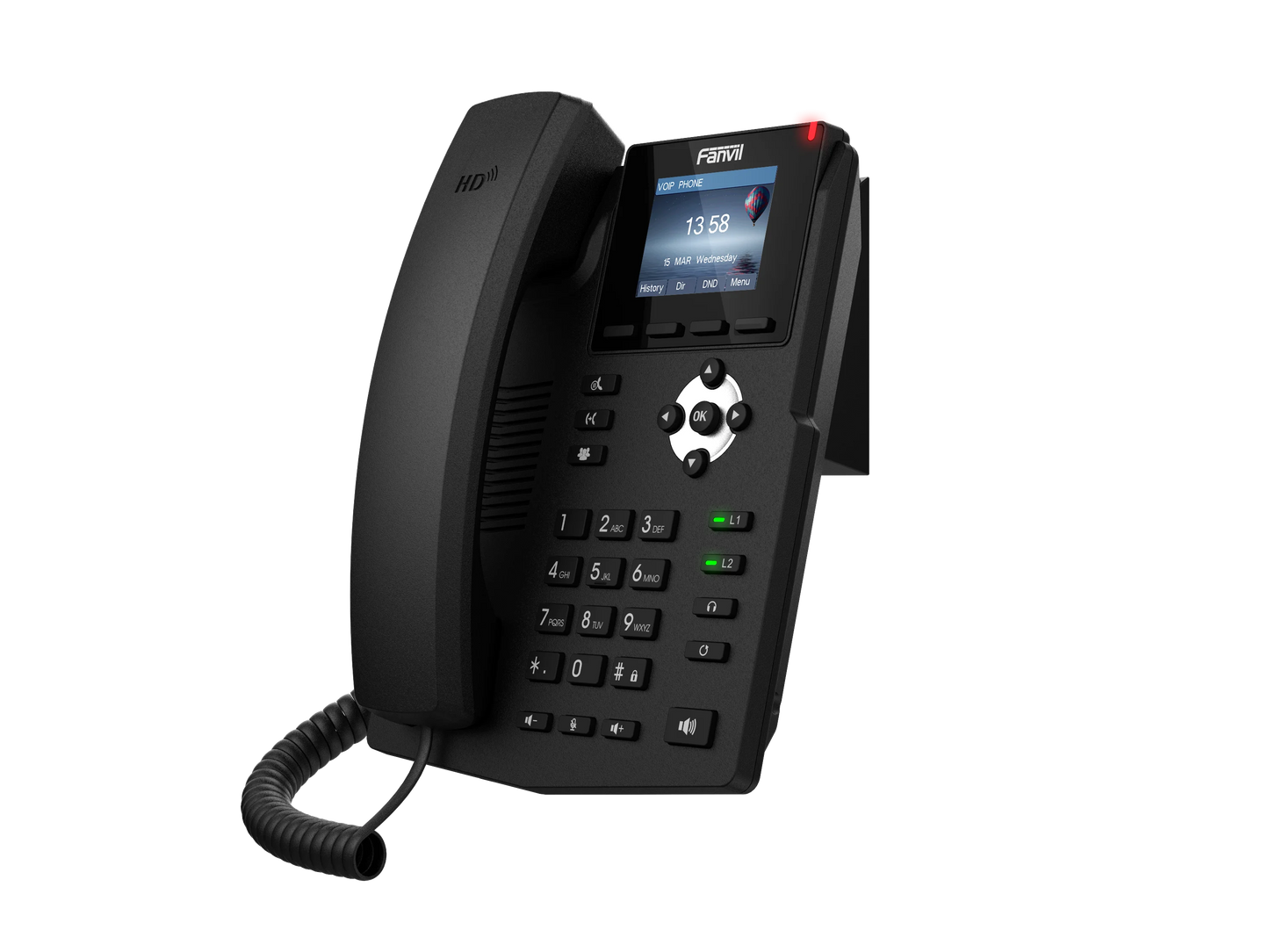

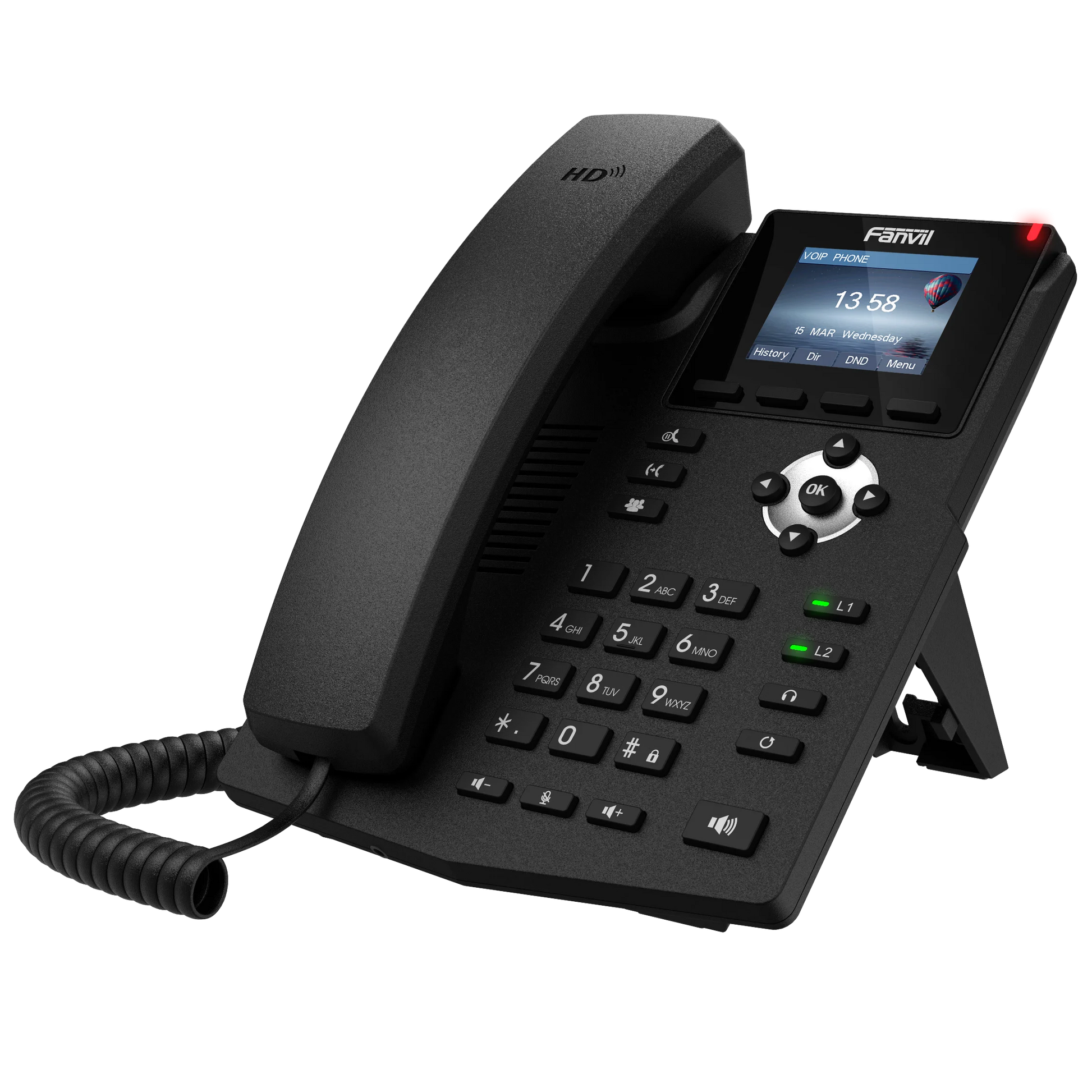

Fanvil X3S/X3SP IP Phone is an industrial masterpiece offers superior user experience and
simplicity for home and office users with elegant appearance and intelligent software. X3S is positioning to be not only a
telephone siting on a user’s desktop for communication, but also a nice artwork in your living room or office.

There is X4U IP Phone available with more functions and better quality!

Contact information:

Christal Liu

Skype: live:chinaskylineluxi WhatsApp: 0086135 3417 2523 Telegram: @skylineChristal

Model	Screen	Network	PoE	Power Adapter
X3S	2.4” color-screen	10/100Mbps	×	√
X3SP	2.4” color-screen	10/100Mbps	√	×
X3G	2.8” color-screen	10/100/1000Mbps	√	×

Physical Specifications

LCD x1: 2.4 or 2.8 inch (320x240) color-screen LCD
Keypad: 32 keys, including
4 Soft-keys
5 Function keys(Hold, Call forward, Conference, Headset, Redial)
4 Navigation keys
1 OK key
2 Line keys with tri-color LED
12 Standard Phone Digits keys
3 Volume Control keys, Up/Down/Mute(Microphone)
1 Hands-free
HD Handset (RJ9) x1
Standard RJ9 Handset Wire x1
1.5M CAT5 Ethernet Cable x1
Back Rack x1

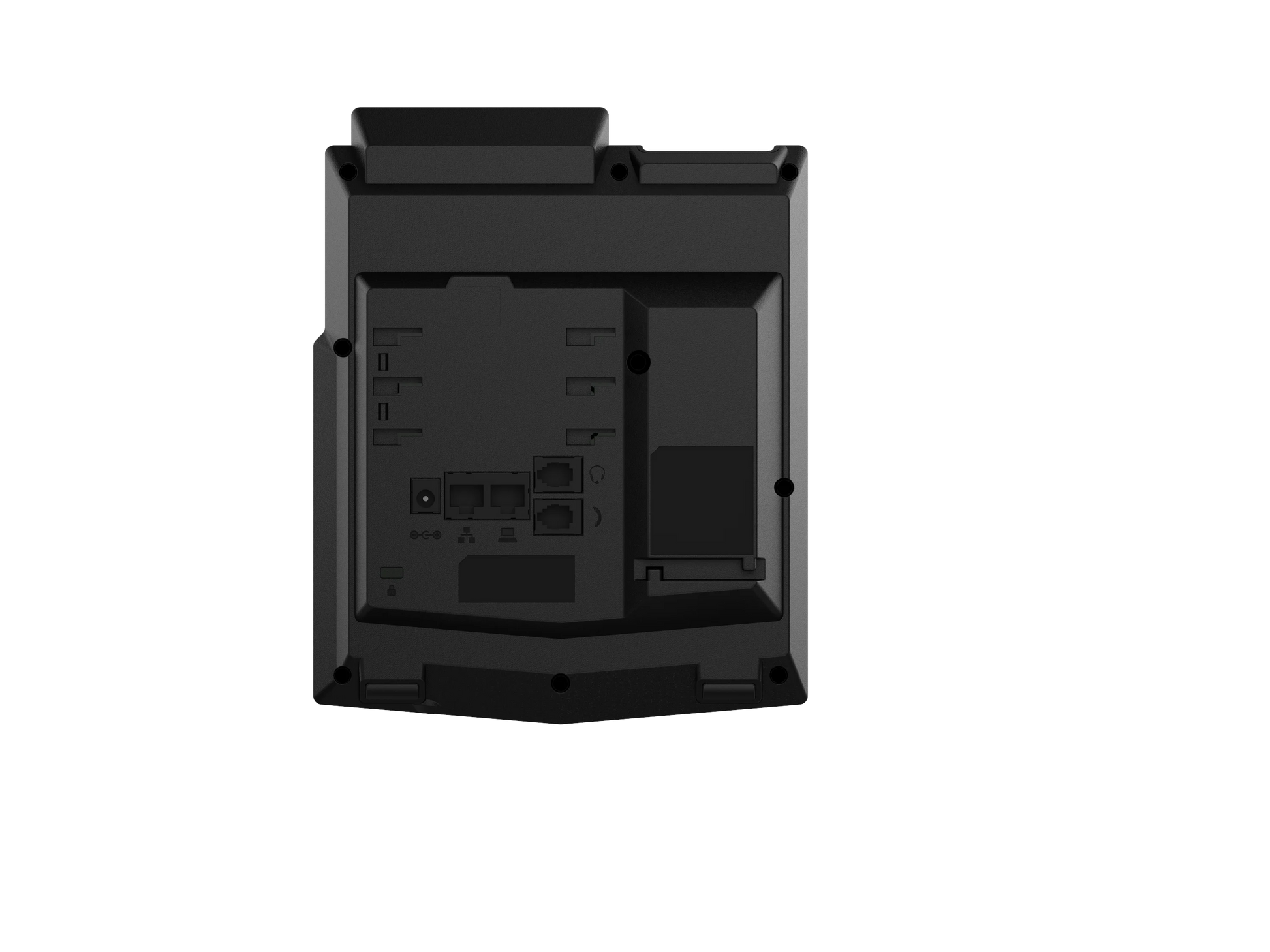

RJ9 Port x2: Handset x1, Headset x1
RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
DC Power Input: 5V/600mA(X3S and X3SP), 5V/1A(X3G)
Power Consumption (X3S/P): Idle 1~1.3W,Peak 1.6~2.2W
Power Consumption (X3G): Idle – 2.1~2.8W,Peak –2.7~4.1W
Working Temperature: 0~40℃
Working Humidity: 10~95%

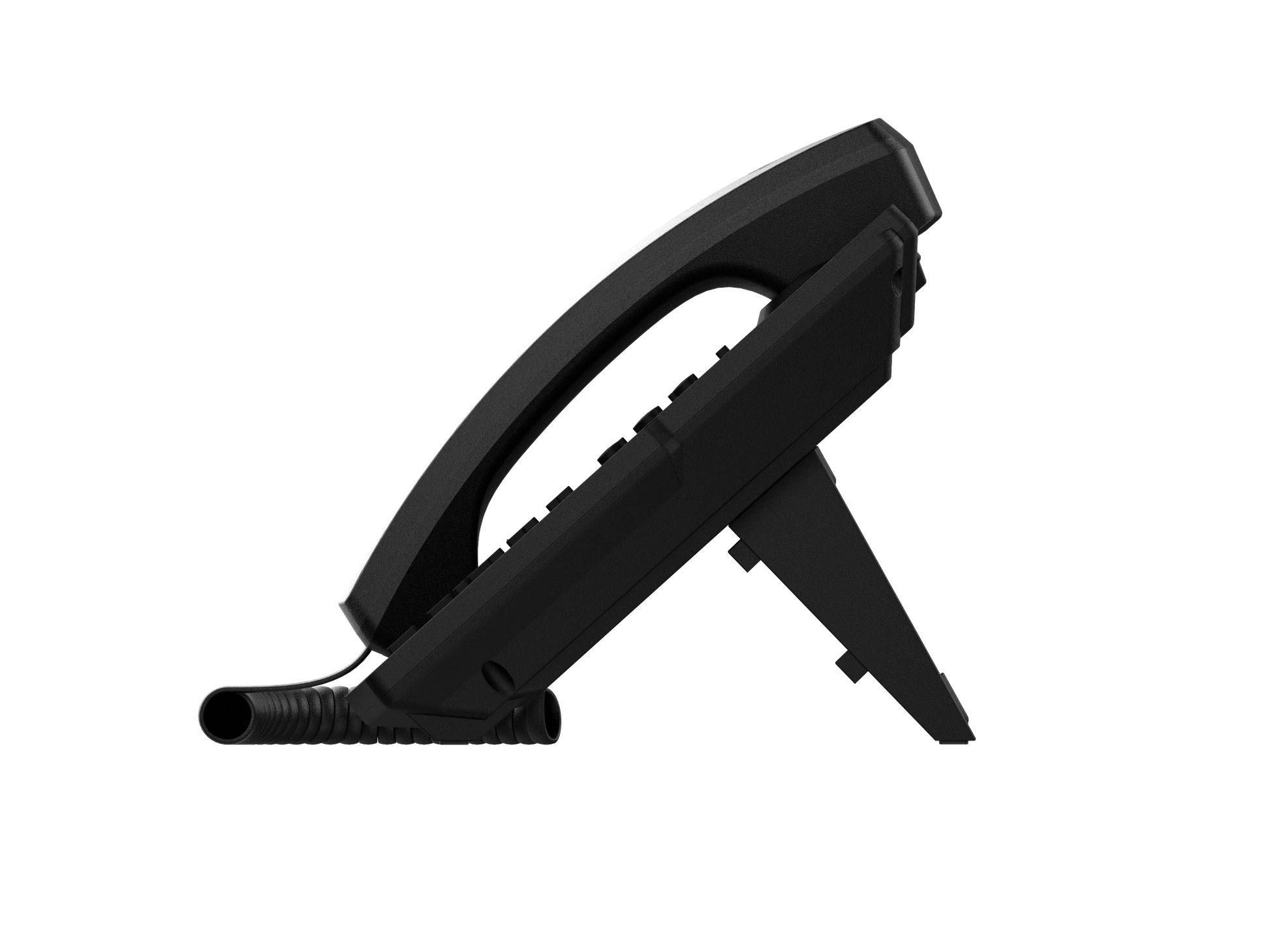

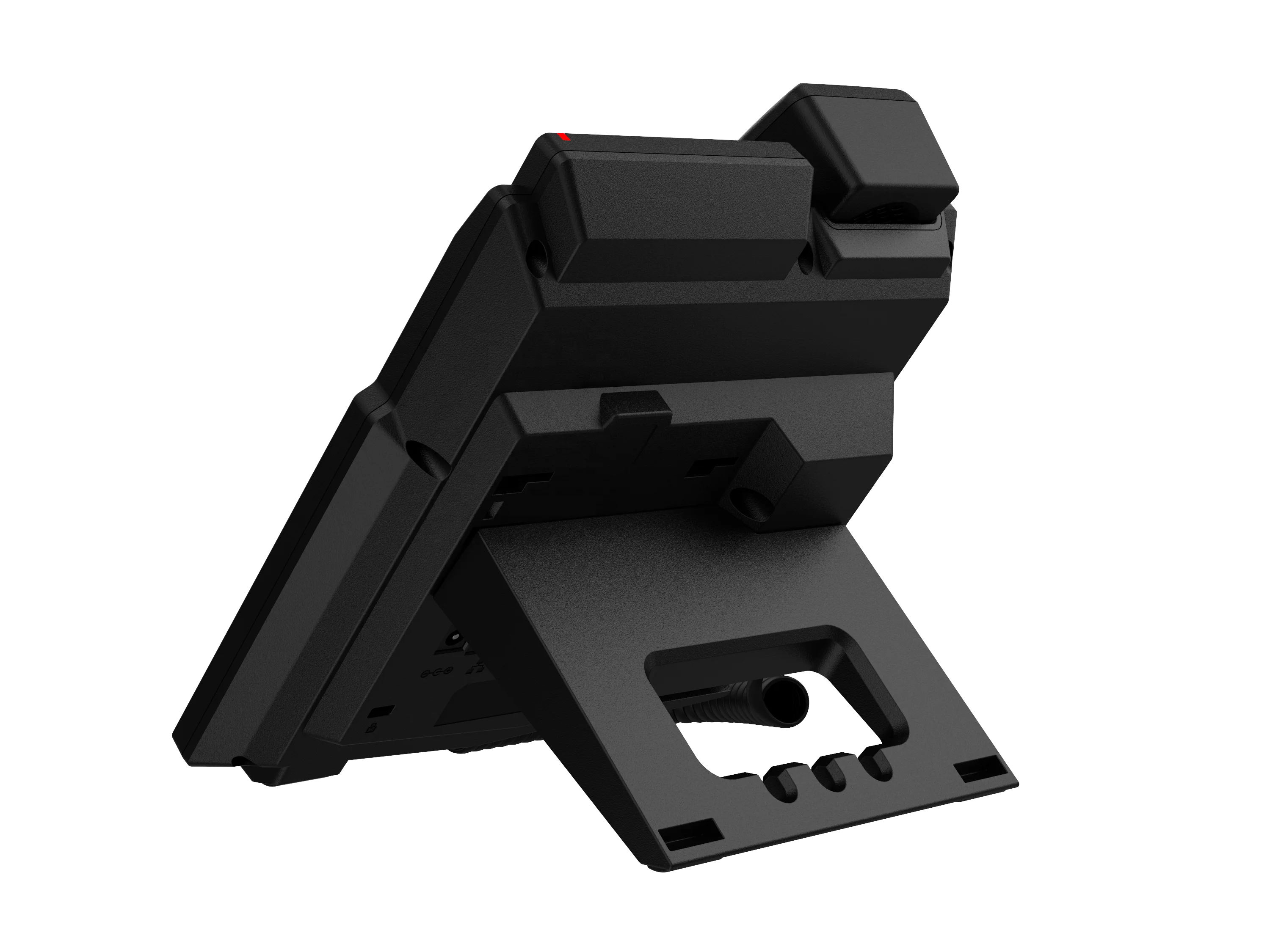

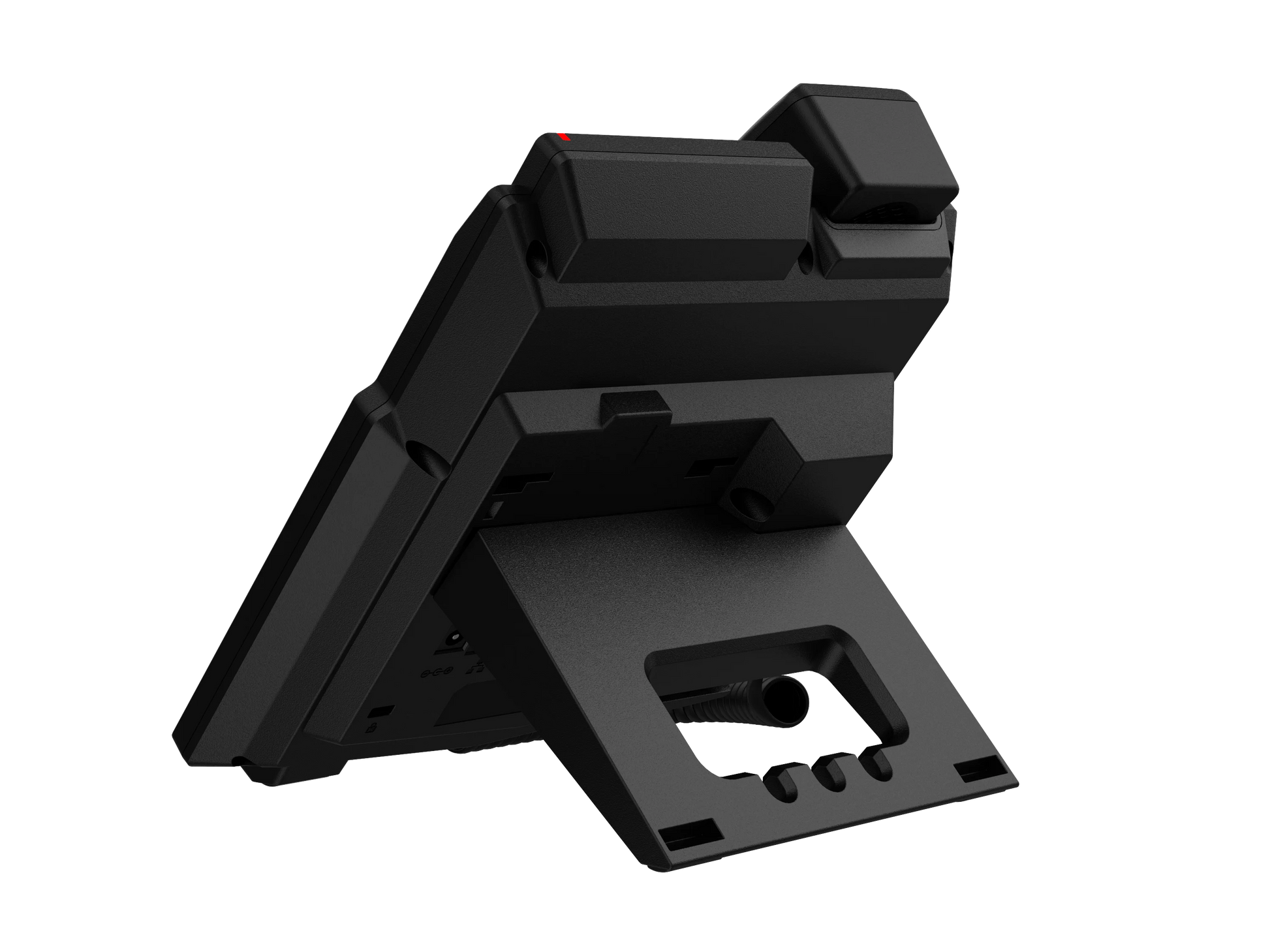

Installation: Desktop Stand or Wall-mount
Color: Black

Device Dimensions:
Desktop Stand: 159x173.3x170.4mm

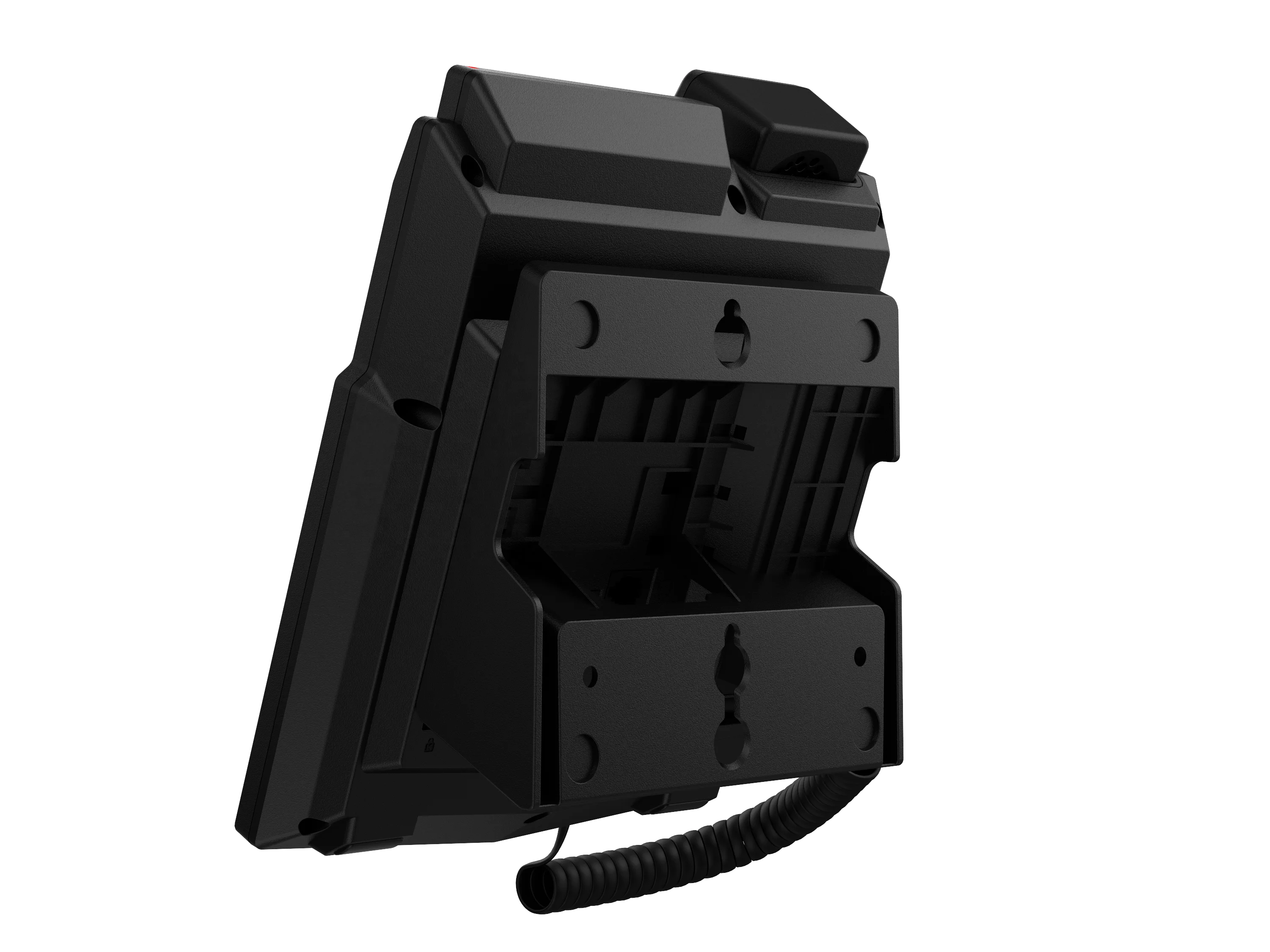

Wall-mount: 159x85.4x214.2mm
Gift Box Dimensions: 275x215x62mm
Outer CTN Dimensions: 445x330x300mm (10 PCS)

Highlights:

The finest artwork in IP telephone industry
Economical and intelligent product concepts
Easy installation and configuration
Smart and friendly user interface
Secure and complete provisioning protocols
Model Screen Network POE Power adapter
X3S 2.4” color-screen 10/100Mbps × √
X3SP 2.4” color-screen 10/100Mbps √ ×
X3G 2.8” color-screen 10/100/1000Mbps √ ×
High Interoperability – Compatible with major platforms:3CX, Asterisk, Broadsoft, Elastix, Zycoo, etc.

Generic:

2 SIP Lines
HD Voice
POE Enabled(X3SP, X3G)
Handset / Hands-free / Headset mode
Desktop / Wall-mount installation
Optional External Power Supply ( X3SP and X3G Optional )

Phone Functions:

Local Phonebook (500 entries)
Remote Phonebook (XML/LDAP, 500 entries)
Call logs ( in/out/missed, 600 entries)
Black/White List Call Filtering
Screen saver
Voice Message Waiting Indication (VMWI)
Programmable DSS/Soft keys
Network Time Synchronization
Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
Support Recording (Through Server Recording )
Action URL / Active URI
uaCSTA

Call Functions:

Call out / Answer / Reject
Mute / Unmute (microphone)
Call Hold / Resume
Call Waiting
Intercom
Caller ID Display
Speed Dial
Anonymous Call (Hide Caller ID)
Call Forwarding (Always/Busy/No Answer)
Call Transfer (Attended/Unattended)
Call Parking/Pick-up (depending on server)
Redial/Auto-Redial
Do-Not-Disturb
Auto-Answering
Voice Message (on server)
3-way Conference
Hot Line
Hot desking

Network	Physical: 10/100Mbps(X3S/X3SP), 10/100/1000Mbps(X3G)Ethernet, dual bridged port for PC bypass IP Configuration: Static / DHCP / PPPoE Network Access Control: 802.1x VPN: L2TP / OpenVPN VLAN LLDP QoS RTCP-XR(RFC3611), VQ-RTCPXR(RFC6035)
Protocols	SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP PPPoE LLDP 802.1x L2TP OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR-069
Audio	HD Voice Microphone/Speaker (Handset/Hands-free, 0~7KHz Frequency Response) Wideband ADC/DAC16KHz Sampling Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB Wideband CODEC: G.722 Full-duplex Acoustic Echo Canceller (AEC) Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer up to 300ms DTMF: In-band, Out-of-Band – DTMF-Relay(RFC2833) / SIP INFO Phonebook Import/Export Firmware Upgrade Syslog
